Java网络商城项目 SpringBoot+SpringCloud+Vue 网络商城（SSM前后端分离项目）三（后台搭建）

一、开发环境

后端技术：

• 基础的SpringMvC、Spring 5.0和MyBatis3
• Spring Boot 2.0.4版本
• Spring Cloud最新版
• Finchley.SR1
• Redis-4,.0
• RabbitMQ-3.4
• Elasticsearch-5.6.8
• nginx-1.10.2
• FastDFS- 5.0.8
• MyCat
• Thymelcaf
• JWT

为了保证开发环境的统一，希望每个人都按照我的环境来配置∶

IDE:我们使用ldea

JDK:统一使用JDK1.8.151

项目构建: maven3.3.x

以上版本即可

二、工程的搭建

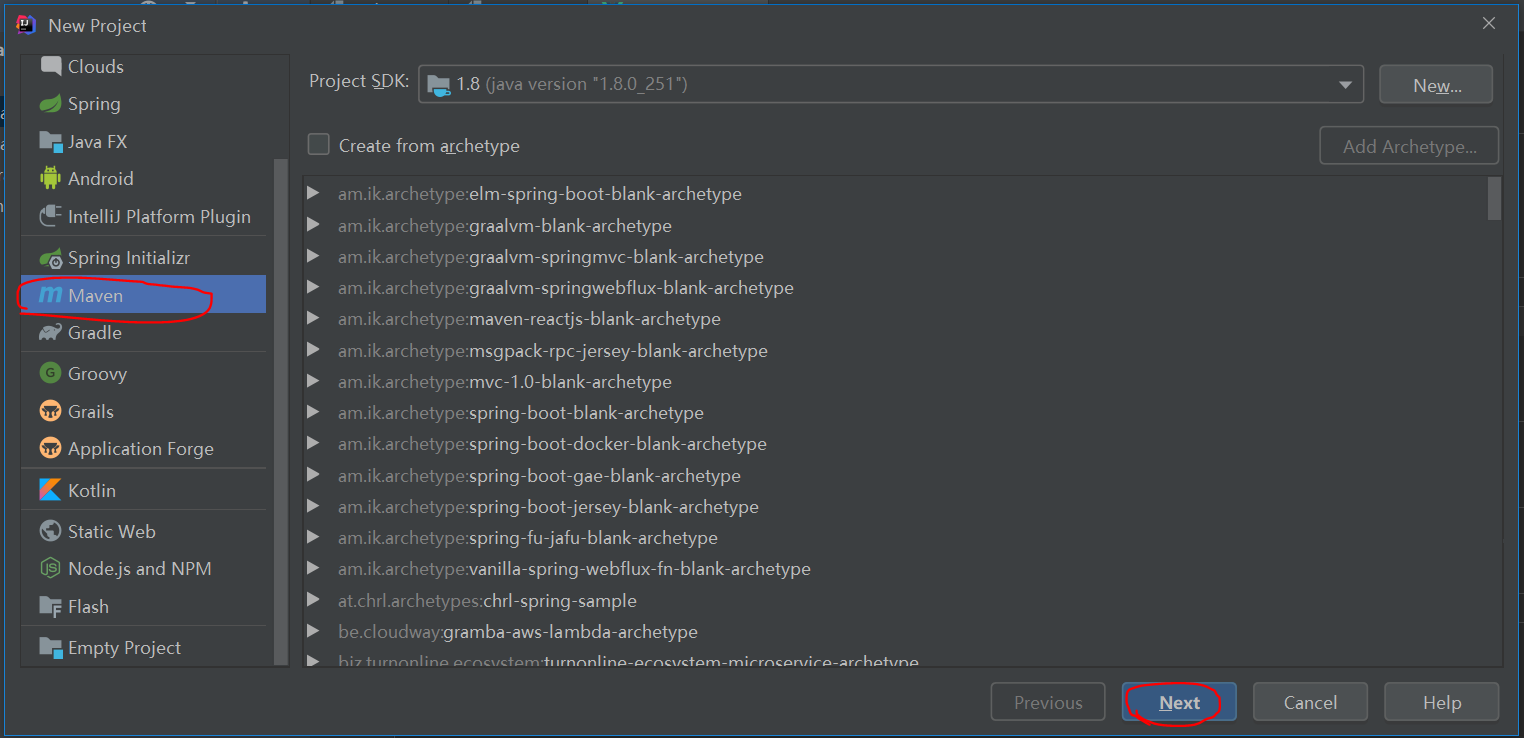

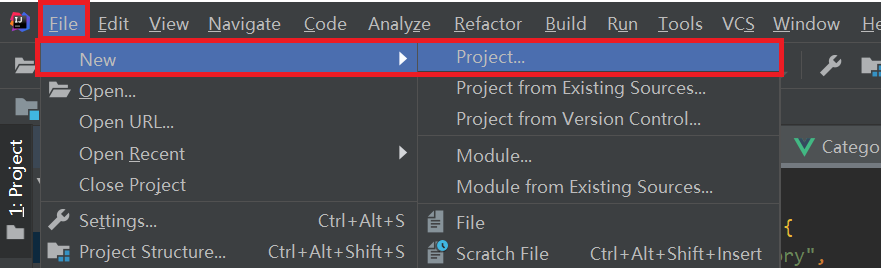

1、创建父工程

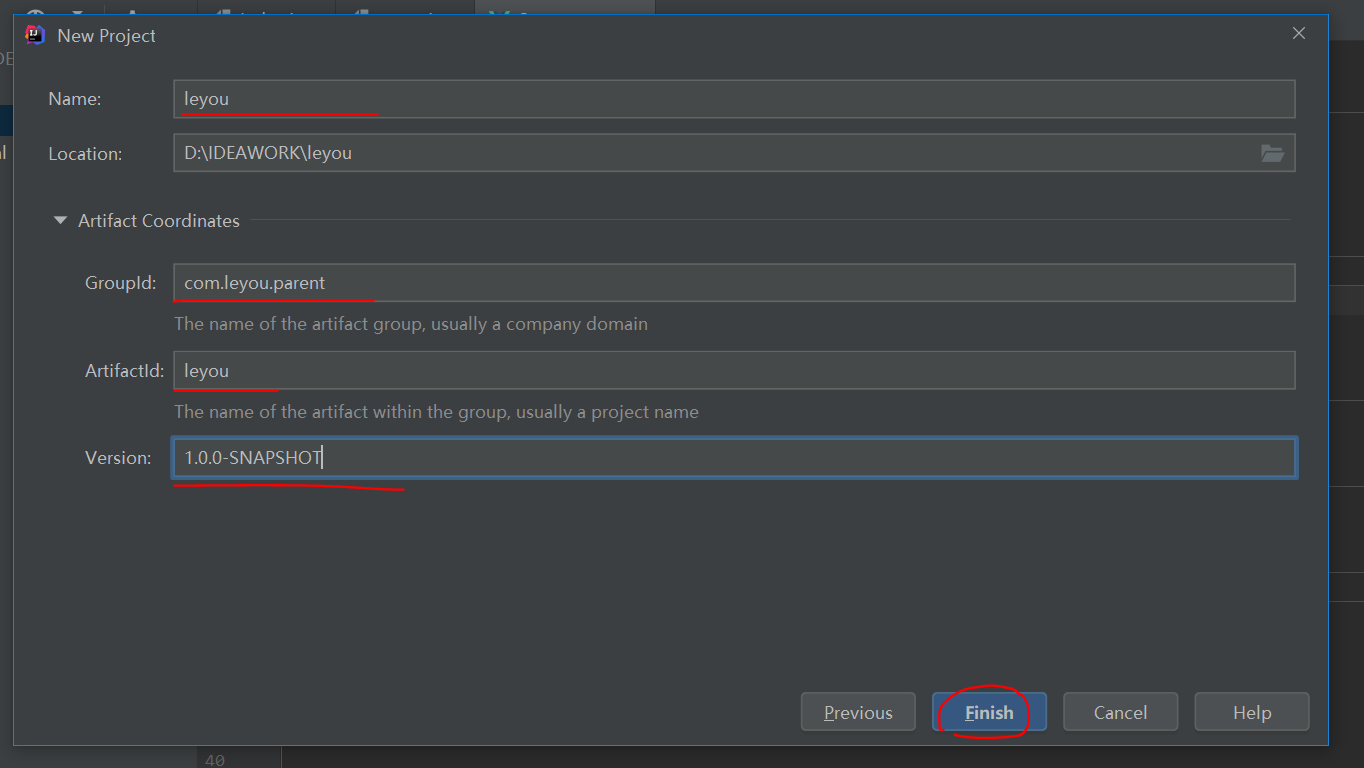

创建统一的父工程: leyou，用来管理依赖及其版本，注意是创建project，而不是moudle

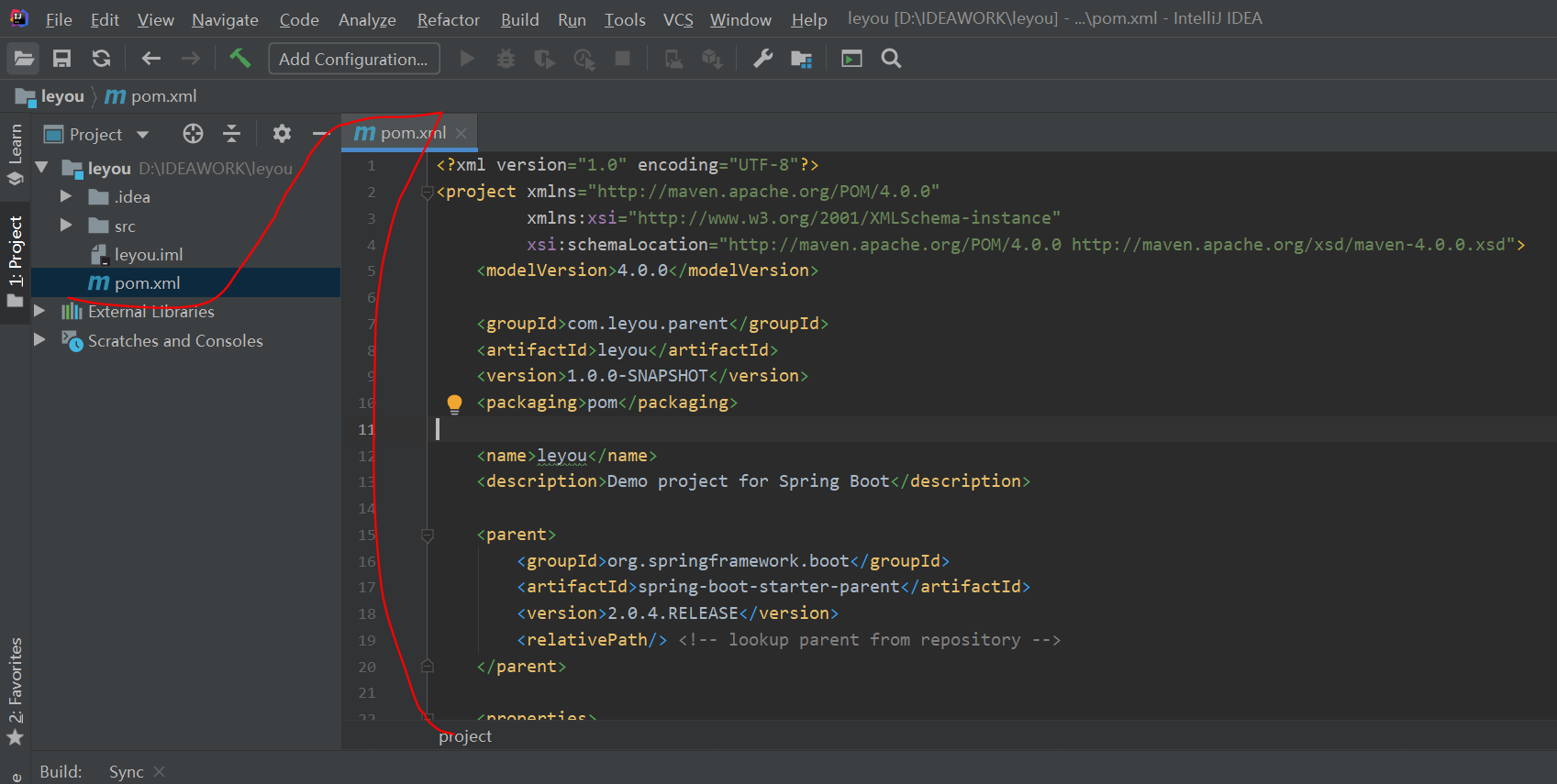

2、引入依赖

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0modelVersion>

    <groupId>com.leyou.parentgroupId>
    <artifactId>leyouartifactId>
    <version>1.0.0-SNAPSHOTversion>
    <packaging>pompackaging>

    <name>leyouname>
    <description>Demo project for Spring Bootdescription>

    <parent>
        <groupId>org.springframework.bootgroupId>
        <artifactId>spring-boot-starter-parentartifactId>
        <version>2.0.4.RELEASEversion>
        <relativePath/>
    parent>

    <properties>
        <project.build.sourceEncoding>UTF-8project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8project.reporting.outputEncoding>
        <java.version>1.8java.version>
        <spring-cloud.version>Finchley.SR2spring-cloud.version>
        <mybatis.starter.version>1.3.2mybatis.starter.version>
        <mapper.starter.version>2.0.3mapper.starter.version>
        <druid.starter.version>1.1.9druid.starter.version>
        <mysql.version>5.1.32mysql.version>
        <pageHelper.starter.version>1.2.5pageHelper.starter.version>
        <leyou.latest.version>1.0.0-SNAPSHOTleyou.latest.version>
        <fastDFS.client.version>1.26.1-RELEASEfastDFS.client.version>
    properties>

    <dependencyManagement>
        <dependencies>

            <dependency>
                <groupId>org.springframework.cloudgroupId>
                <artifactId>spring-cloud-dependenciesartifactId>
                <version>${spring-cloud.version}version>
                <type>pomtype>
                <scope>importscope>
            dependency>

            <dependency>
                <groupId>org.mybatis.spring.bootgroupId>
                <artifactId>mybatis-spring-boot-starterartifactId>
                <version>${mybatis.starter.version}version>
            dependency>

            <dependency>
                <groupId>tk.mybatisgroupId>
                <artifactId>mapper-spring-boot-starterartifactId>
                <version>${mapper.starter.version}version>
            dependency>

            <dependency>
                <groupId>com.github.pagehelpergroupId>
                <artifactId>pagehelper-spring-boot-starterartifactId>
                <version>${pageHelper.starter.version}version>
            dependency>

            <dependency>
                <groupId>mysqlgroupId>
                <artifactId>mysql-connector-javaartifactId>
                <version>${mysql.version}version>
            dependency>

            <dependency>
                <groupId>com.github.tobatogroupId>
                <artifactId>fastdfs-clientartifactId>
                <version>${fastDFS.client.version}version>
            dependency>
        dependencies>
    dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>org.apache.commonsgroupId>
            <artifactId>commons-lang3artifactId>
            <version>3.4version>
        dependency>
        <dependency>
            <groupId>org.projectlombokgroupId>
            <artifactId>lombokartifactId>
        dependency>

    dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.bootgroupId>
                <artifactId>spring-boot-maven-pluginartifactId>
            plugin>
        plugins>
    build>


project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102

3、创建EurekaServer

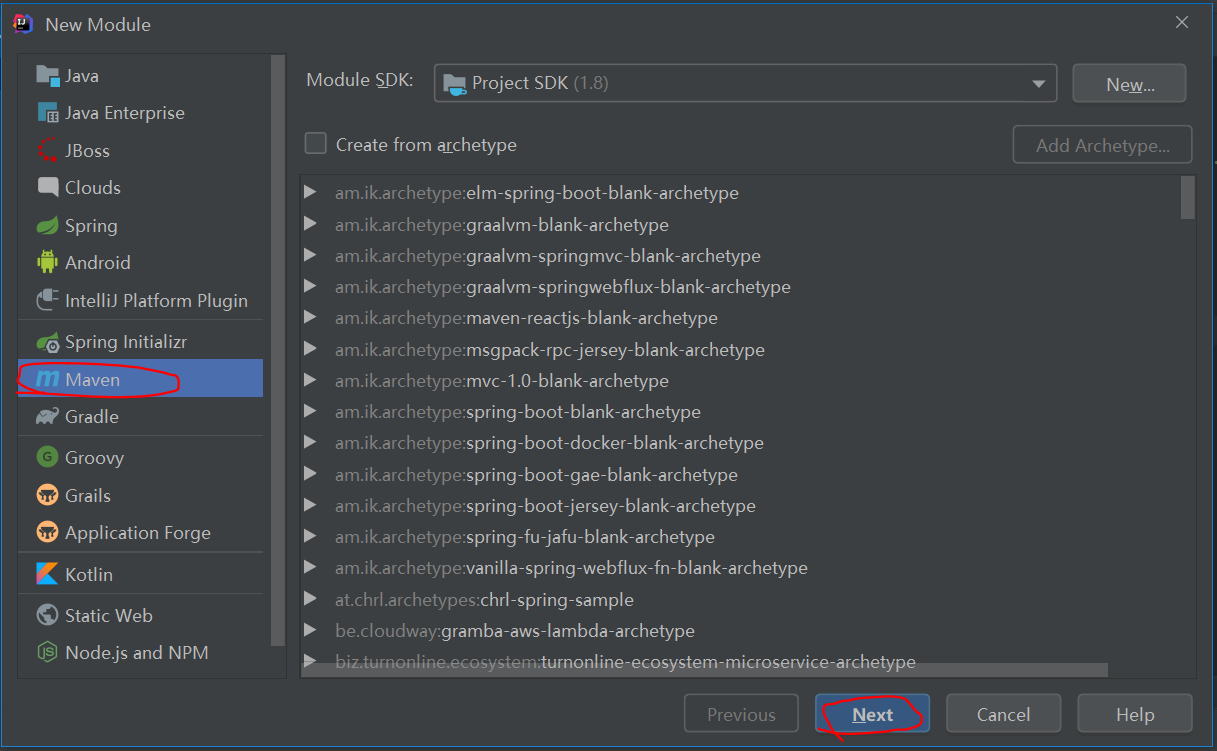

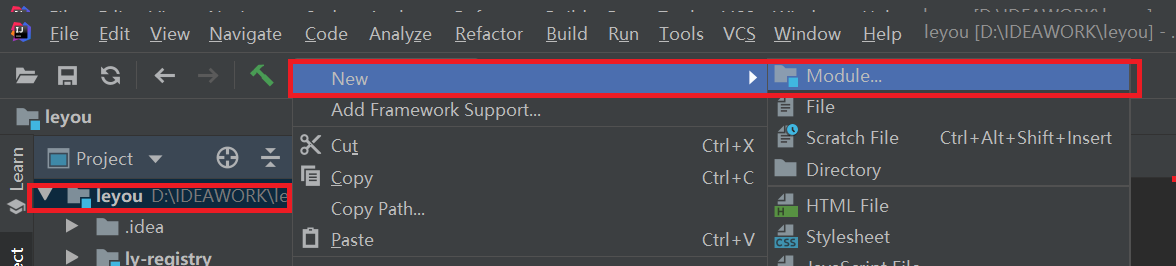

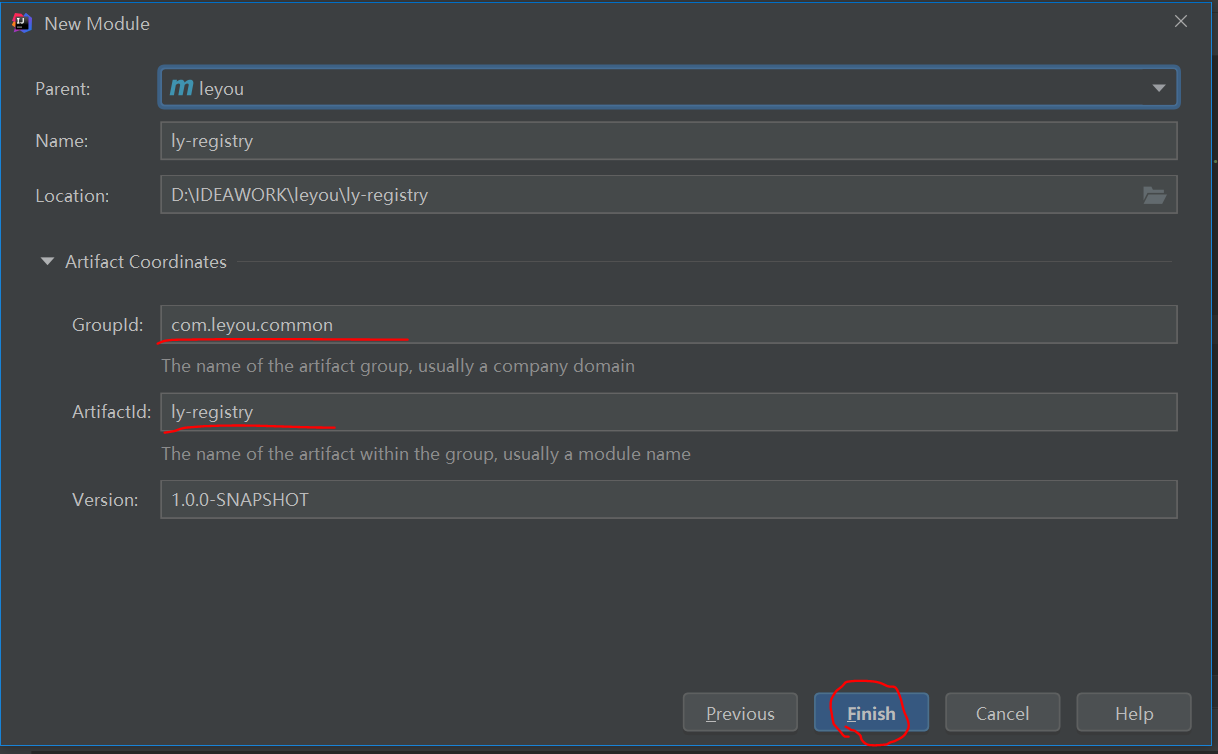

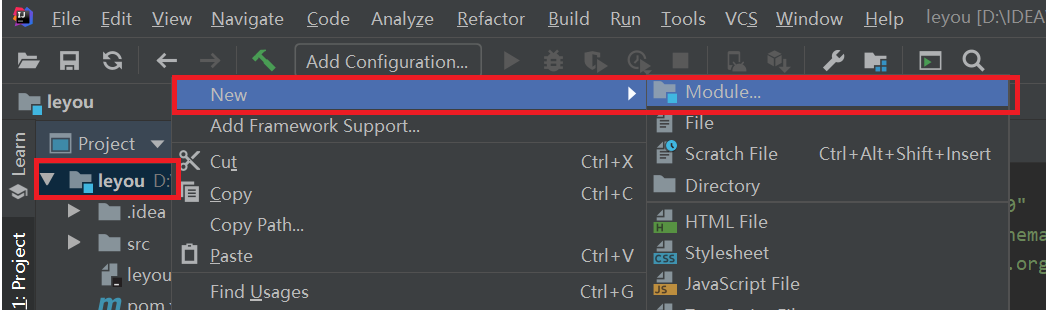

（1）创建子工程（ly-registry）

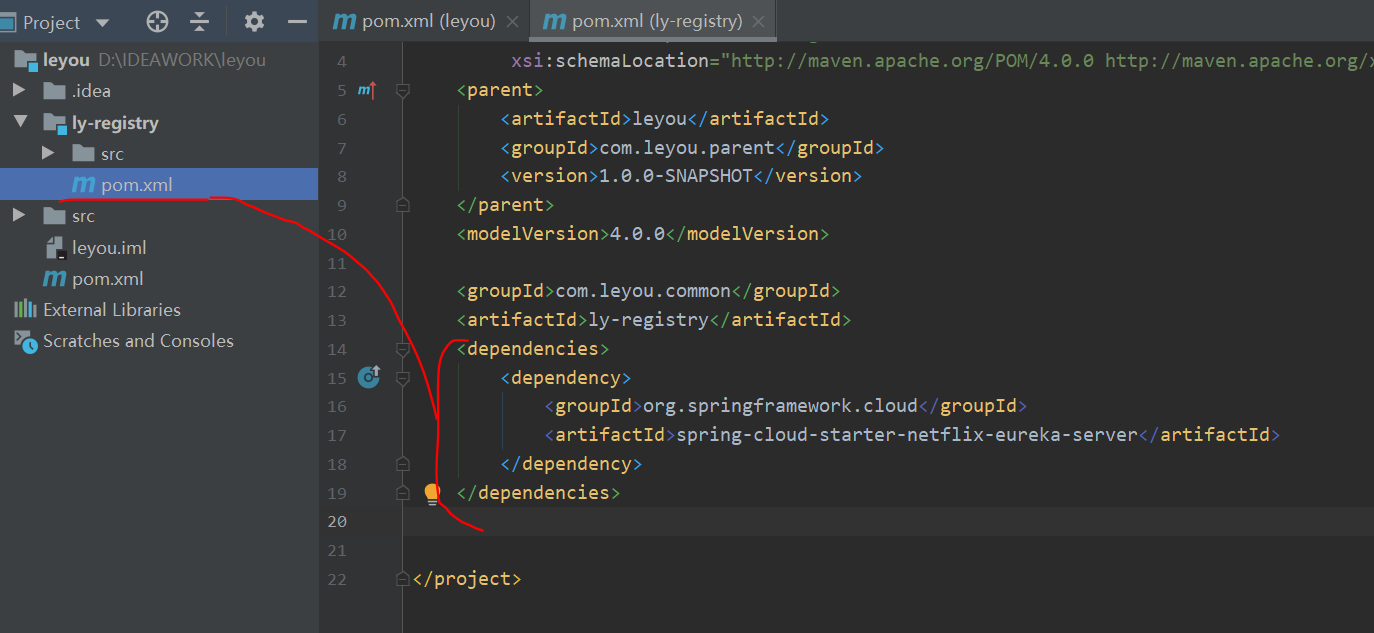

（2）引入Eureka的依赖

  <dependencies>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-serverartifactId>
        dependency>
  dependencies>
1
2
3
4
5
6

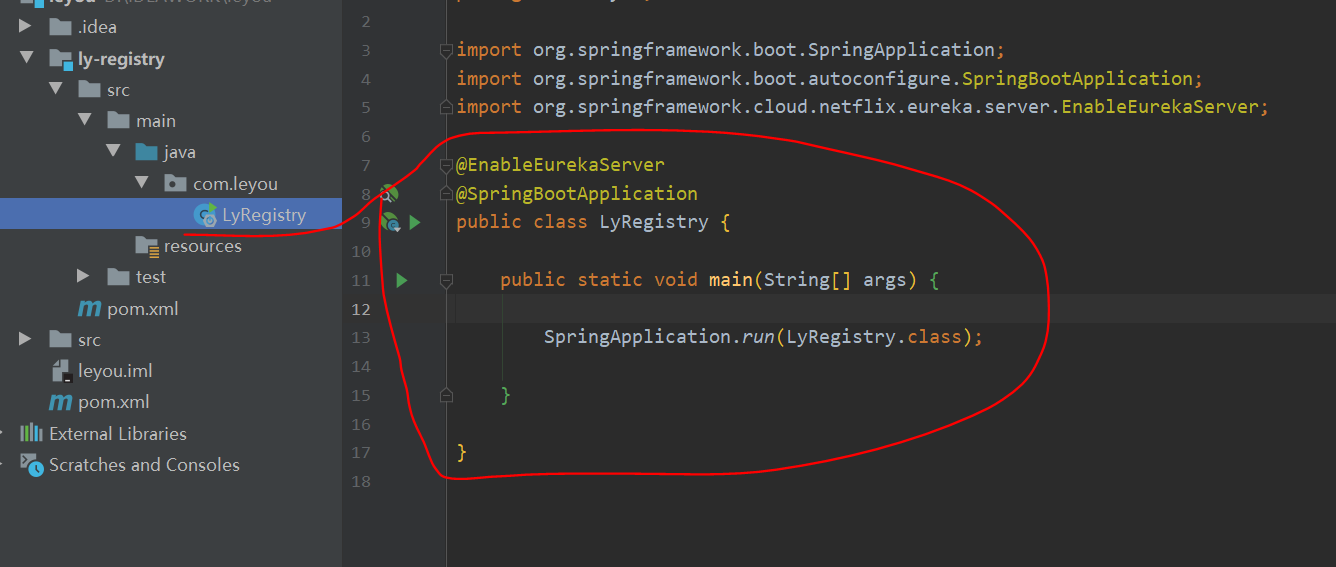

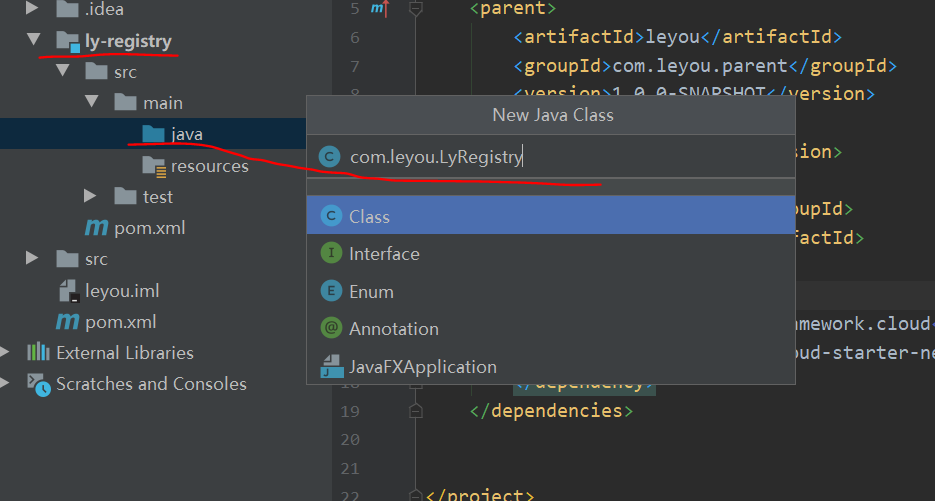

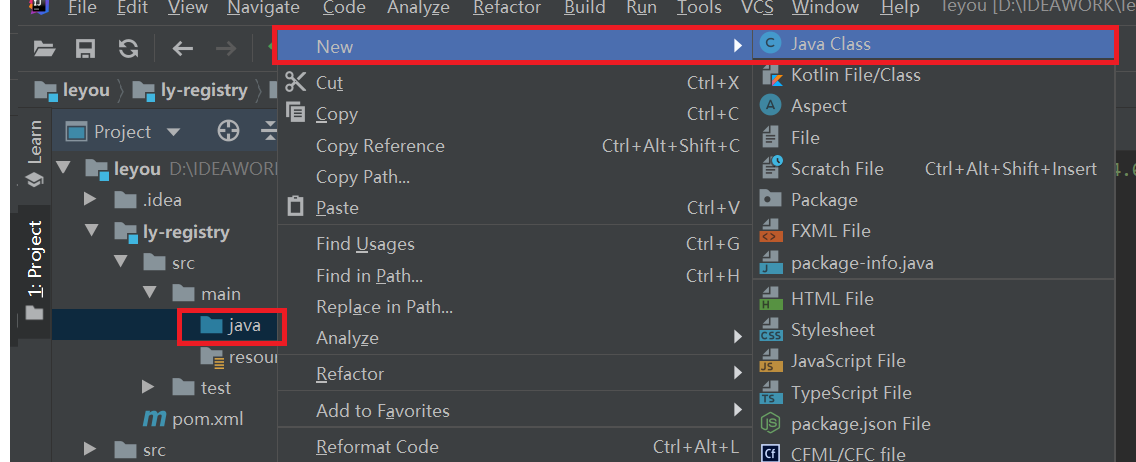

（3）编写启动类（并添加注解）

package com.leyou;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.cloud.netflix.eureka.server.EnableEurekaServer;

@EnableEurekaServer
@SpringBootApplication
public class LyRegistry {

    public static void main(String[] args) {

        SpringApplication.run(LyRegistry.class);

    }

}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17

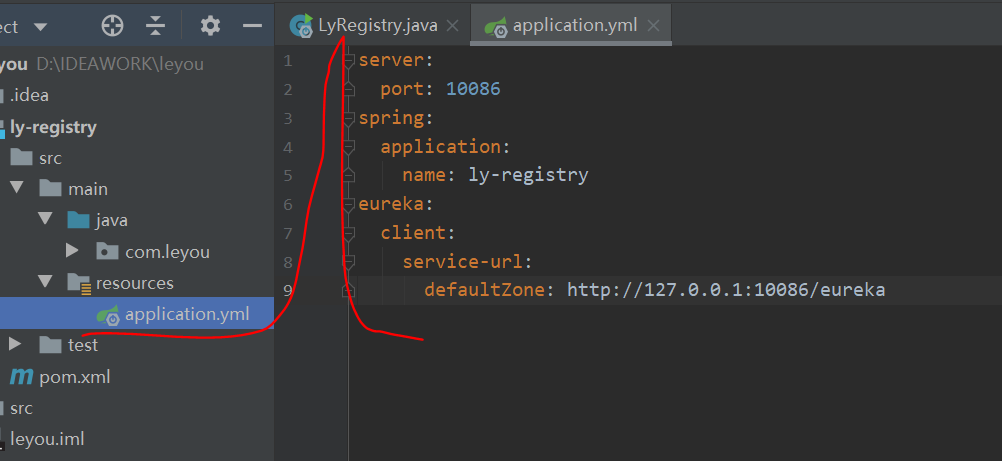

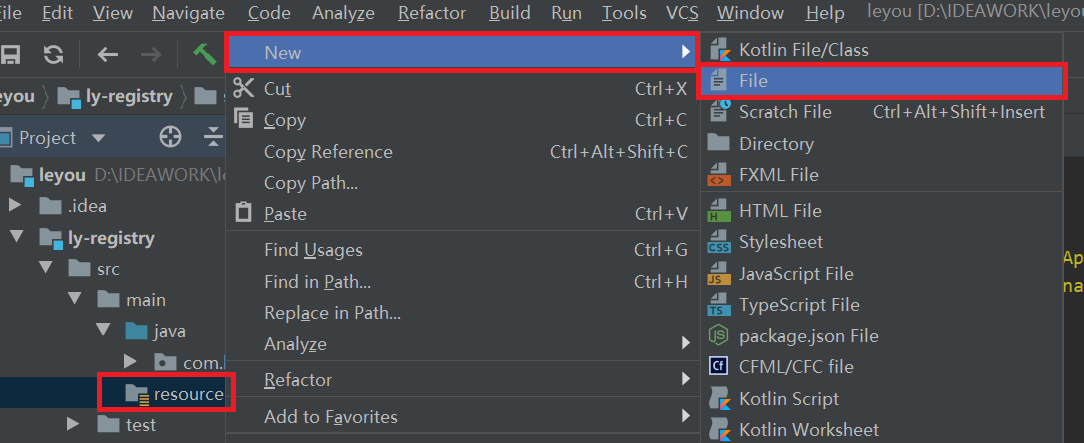

（4）编写配置文件

server:
  port: 10086
spring:
  application:
    name: ly-registry
eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:10086/eureka
1
2
3
4
5
6
7
8
9

4、创建Zuul网关

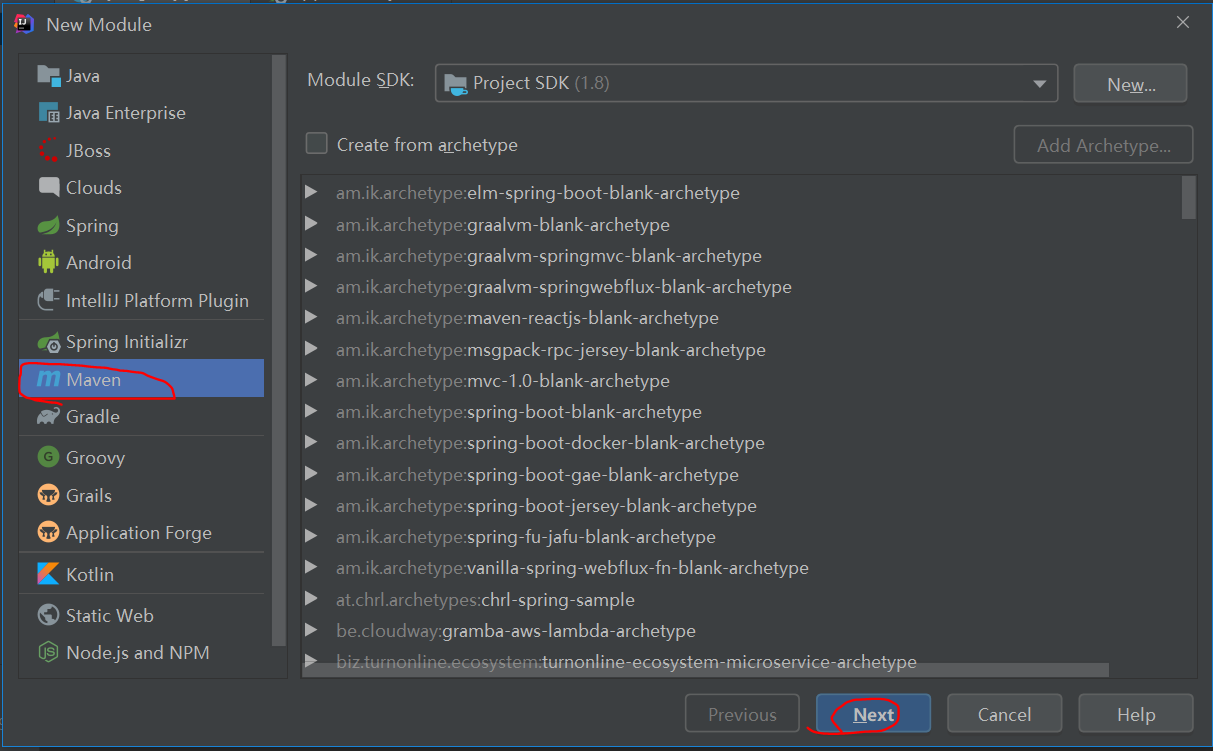

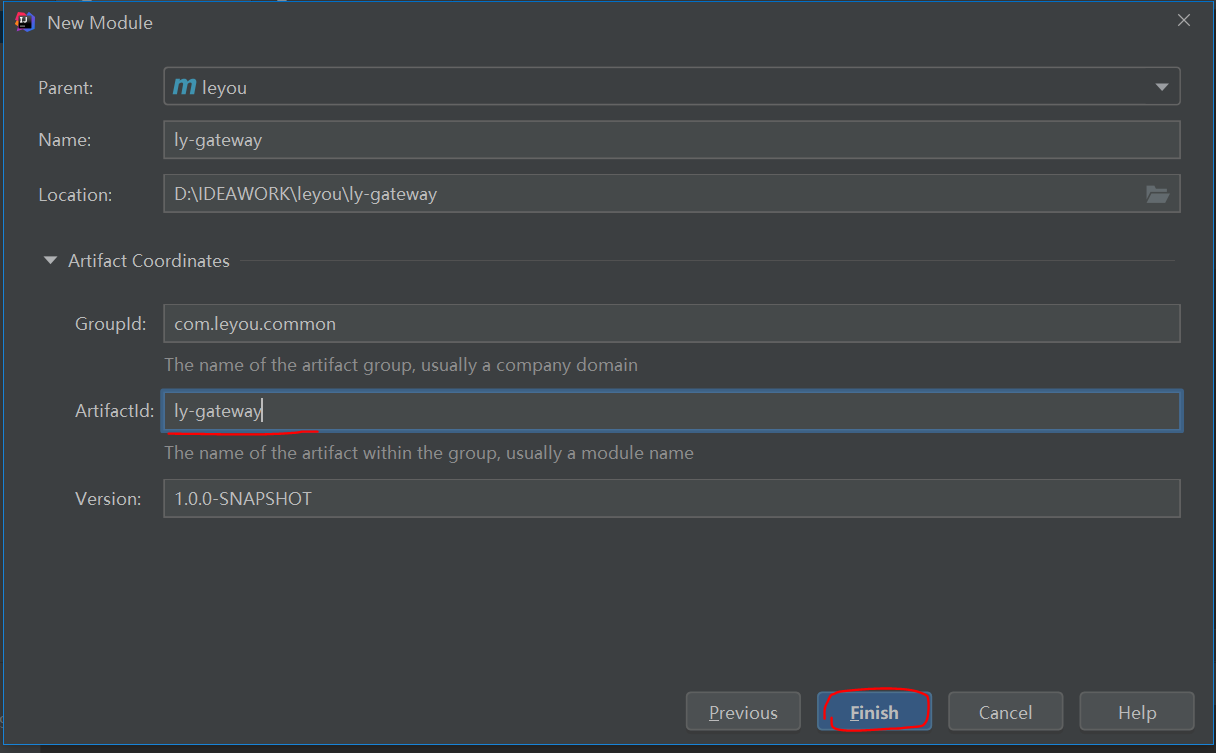

（1）创建工程

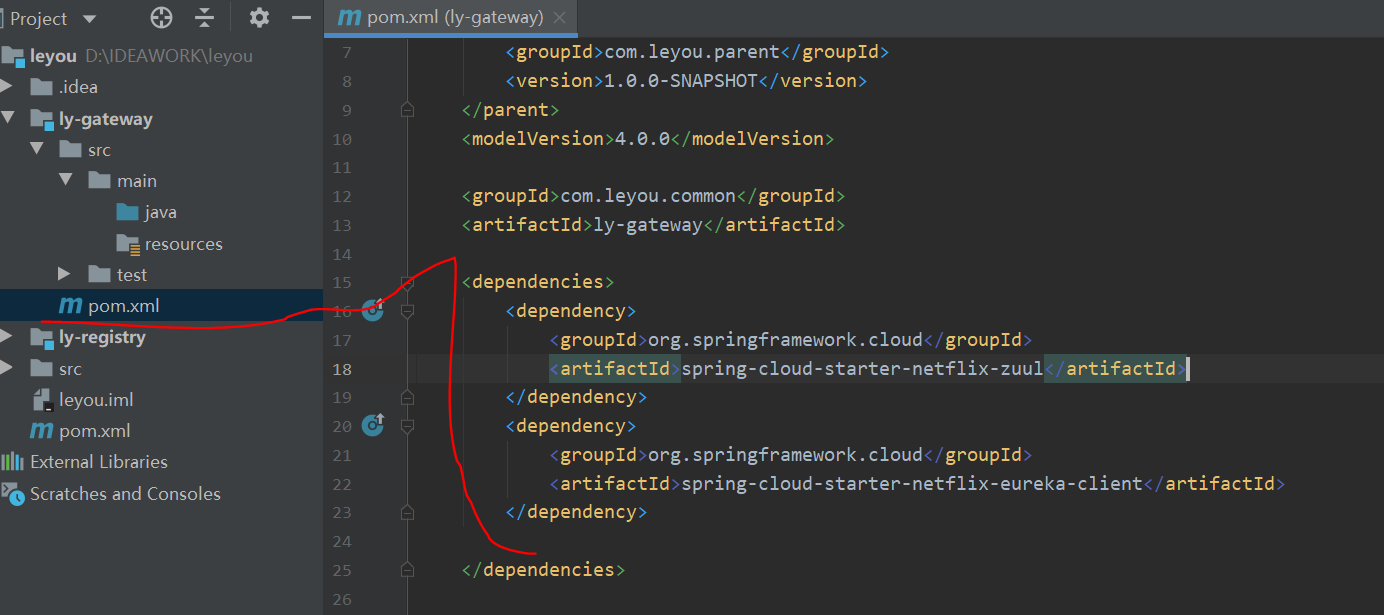

（2）引入依赖

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>leyouartifactId>
        <groupId>com.leyou.parentgroupId>
        <version>1.0.0-SNAPSHOTversion>
    parent>
    <modelVersion>4.0.0modelVersion>

    <groupId>com.leyou.commongroupId>
    <artifactId>ly-gatewayartifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-zuulartifactId>
        dependency>
        <dependency>
            <groupId>org.springframework.cloudgroupId>
            <artifactId>spring-cloud-starter-netflix-eureka-clientartifactId>
        dependency>

    dependencies>


project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28

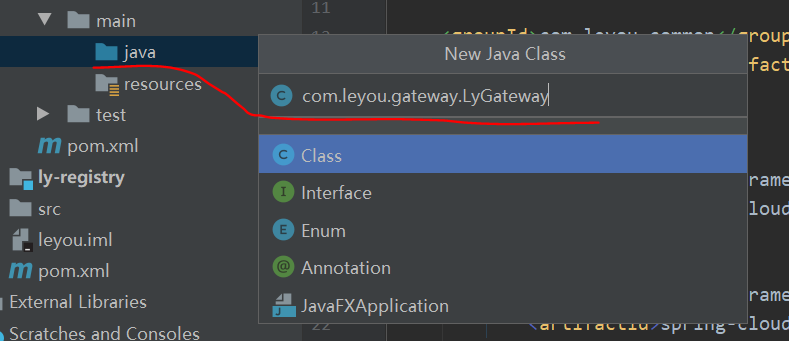

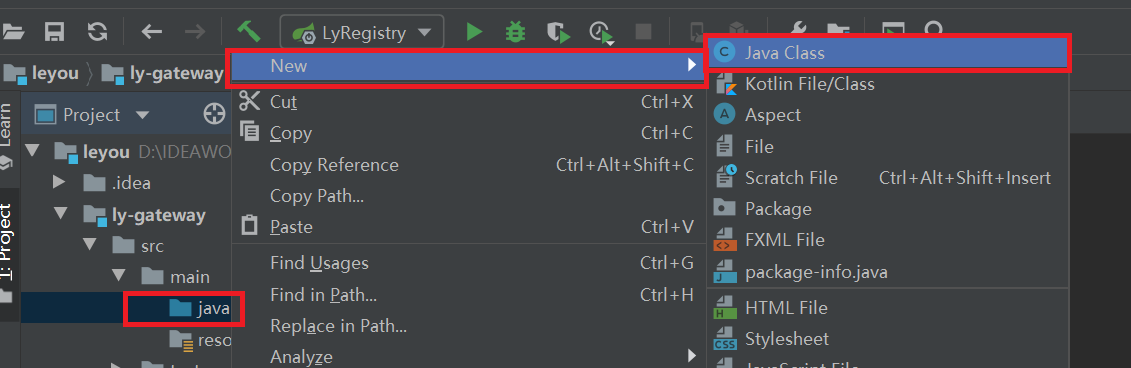

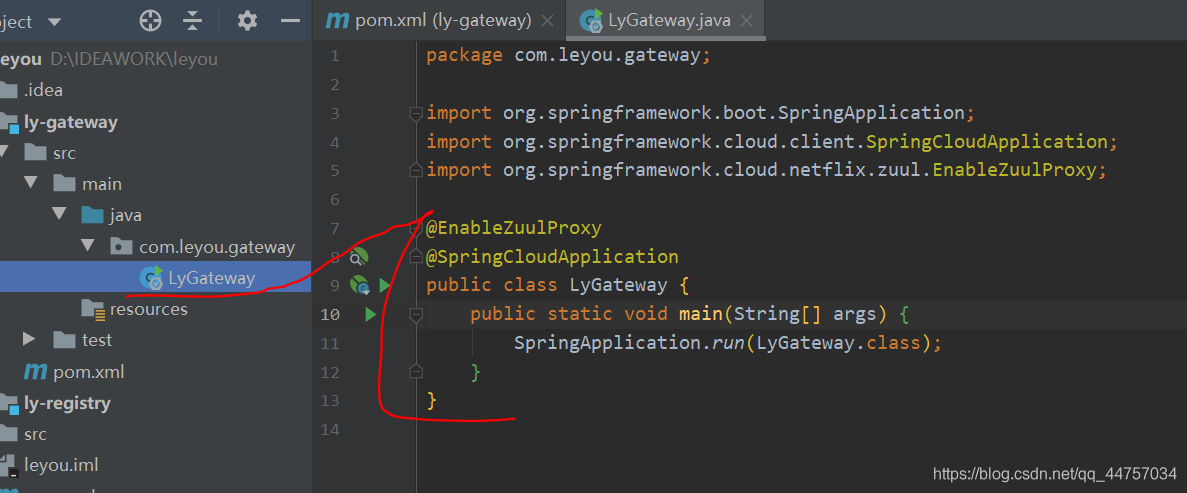

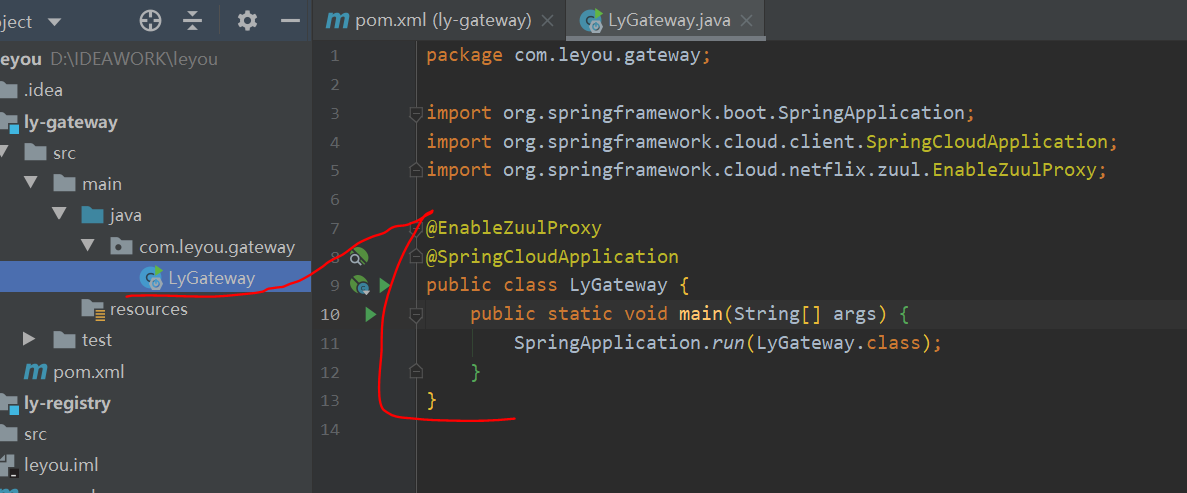

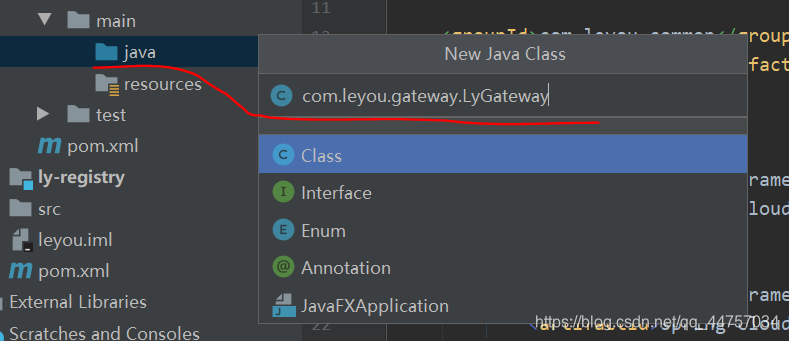

（3）编写启动类（添加注解）

package com.leyou.gateway;
import org.springframework.boot.SpringApplication;
import org.springframework.cloud.client.SpringCloudApplication;
import org.springframework.cloud.netflix.zuul.EnableZuulProxy;

@EnableZuulProxy
@SpringCloudApplication
public class LyGateway {
    public static void main(String[] args) {
        SpringApplication.run(LyGateway.class);
    }
}

1
2
3
4
5
6
7
8
9
10
11
12
13

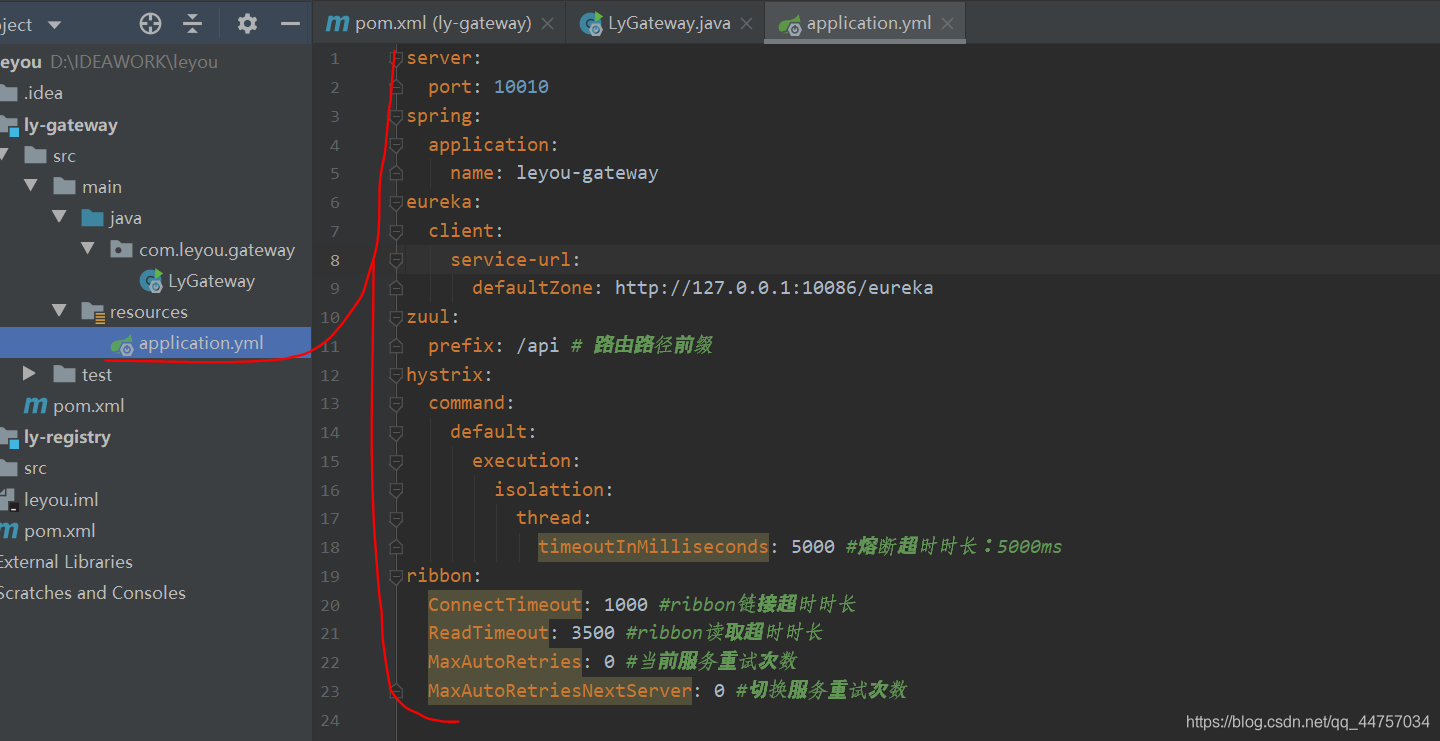

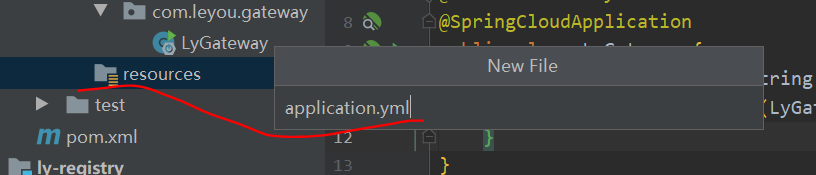

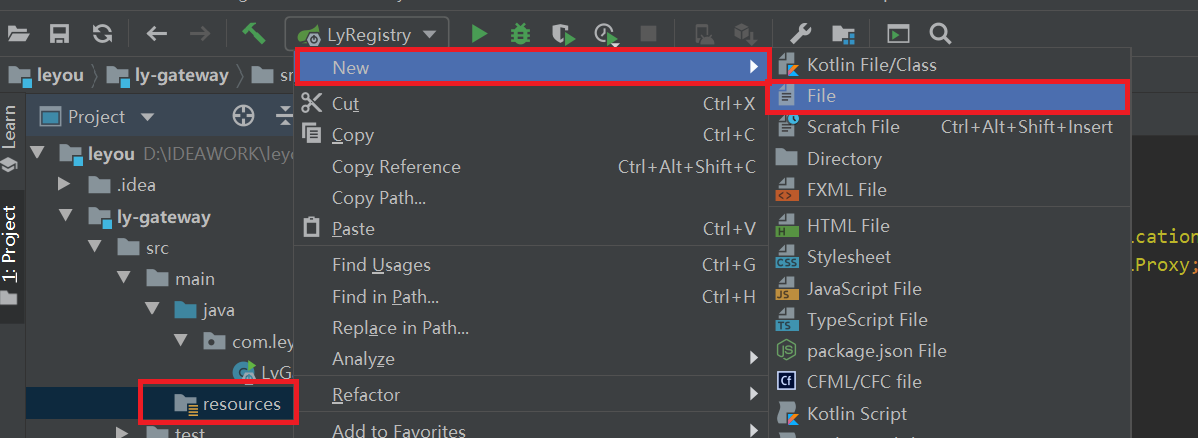

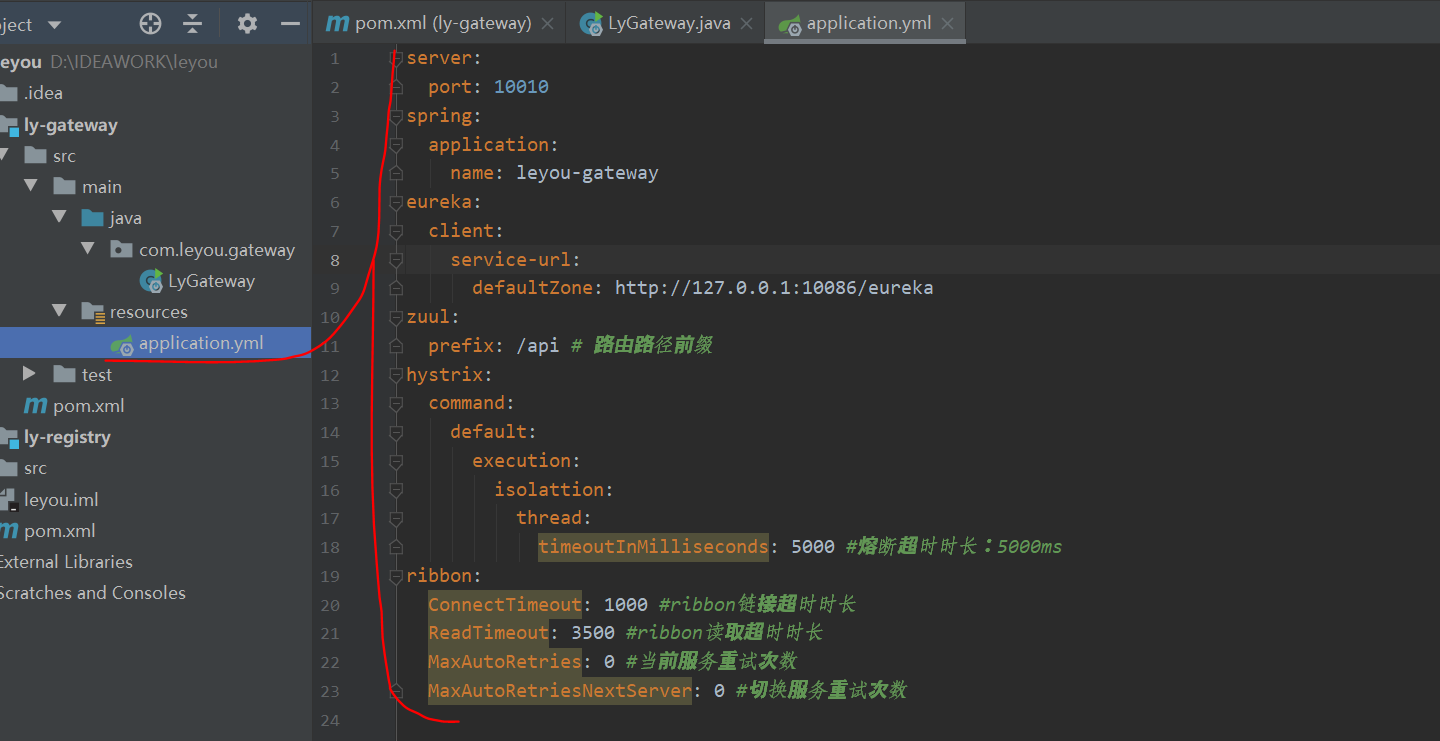

（4）编写配置文件

server:
  port: 10010
spring:
  application:
    name: leyou-gateway
eureka:
  client:
    service-url:
      defaultZone: http://127.0.0.1:10086/eureka
zuul:
  prefix: /api # 路由路径前缀
hystrix:
  command:
    default:
      execution:
        isolattion:
          thread:
            timeoutInMilliseconds: 5000 #熔断超时时长：5000ms
ribbon:
  ConnectTimeout: 1000 #ribbon链接超时时长
  ReadTimeout: 3500 #ribbon读取超时时长
  MaxAutoRetries: 0 #当前服务重试次数
  MaxAutoRetriesNextServer: 0 #切换服务重试次数
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

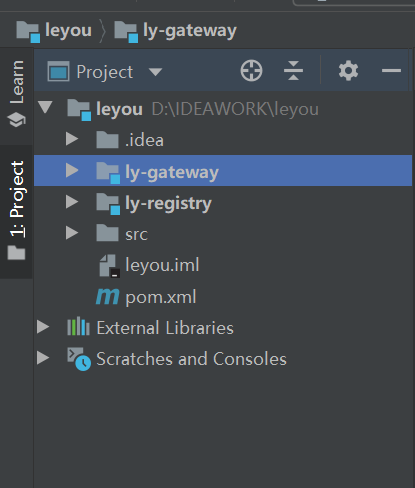

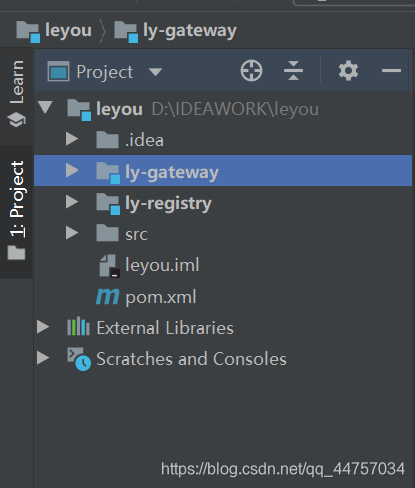

（5）项目结构

目前,leyou下有两个子模块

• ly-gateway : 服务的注册中心（EurekaServer）
• ly-registry : 服务网关（Zuul）

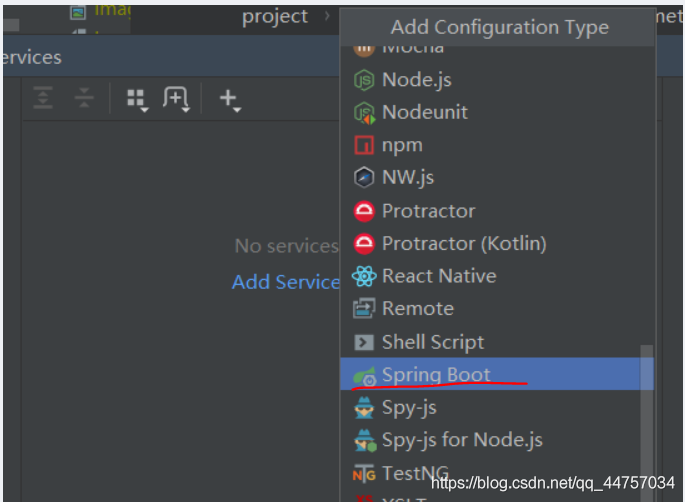

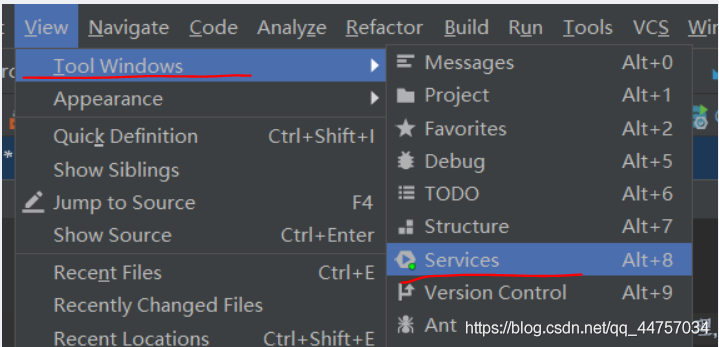

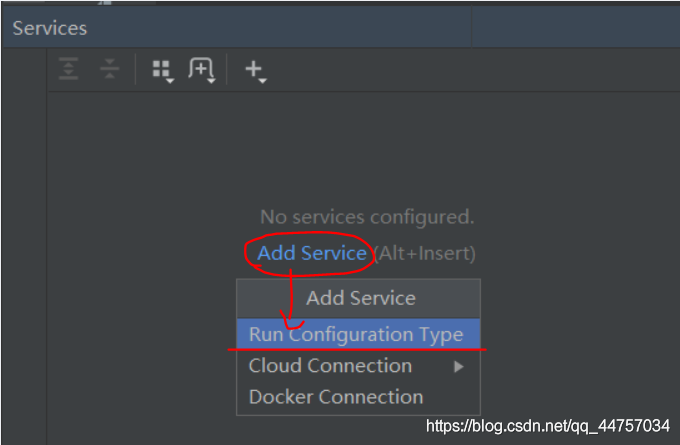

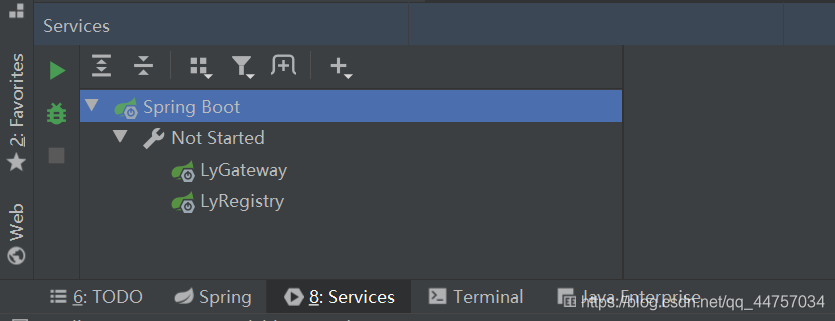

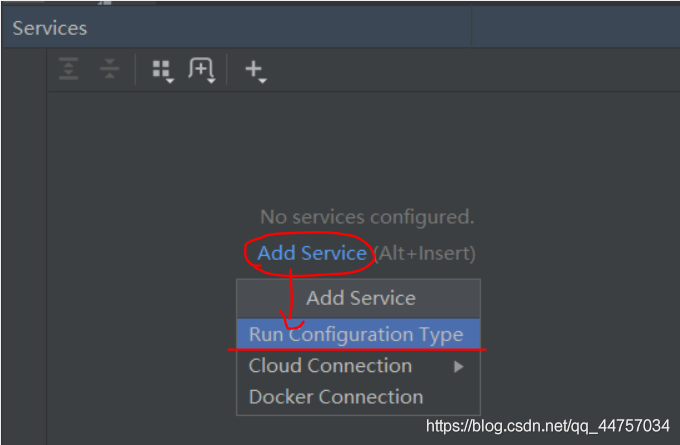

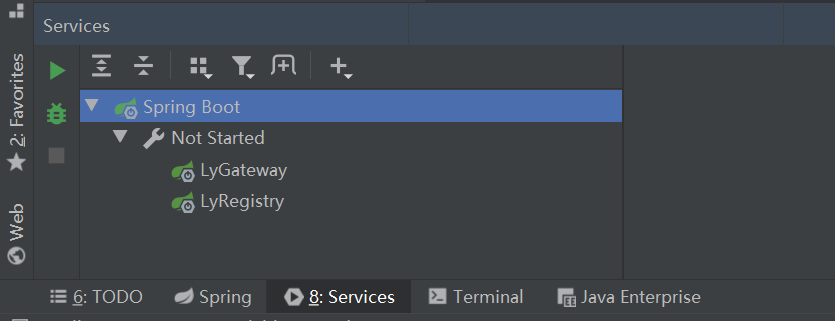

打开Run Dashboard
